Arm, Control: Installation: Installation

WARNING: This page is about a different car, the 2013 RAM 3500 HD and 2013 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

Discard the nuts and bolts and do not reuse. New nuts and bolts should be used when replacing or servicing the control arms.

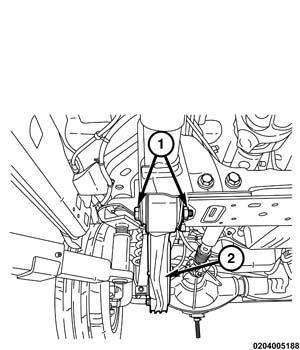

Fig 1: Frame Rail Bracket, Nut & Bolt
GC0155424Courtesy of CHRYSLER GROUP, LLC
  1. Position the control arm (2) at the axle brackets and frame rail bracket (1).
  2. Install the rear bolt (1) and finger tighten the nut.

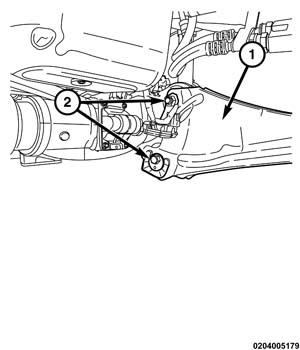

    Fig 2: Upper Control Arm Nut And Bolts
    GC0155410Courtesy of CHRYSLER GROUP, LLC
  3. Install the cam bolt (2), cam and nut in the axle and align the reference marks.
  4. Install the upper control arm bolt and nut.

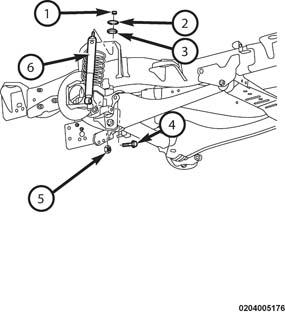

    Fig 3: Shock & Fasteners
    GC0155463Courtesy of CHRYSLER GROUP, LLC
  5. Position the lower shock (6) into the mounting bracket.
  6. Install the lower shock bolt and fastener (4, 5) and tighten to specifications Refer to FRONT, LINK AND COIL, SPECIFICATIONS .
  7. Remove jack stand from axle.
  8. Remove support and lower the vehicle.
    Fig 4: Upper Control Arm Nut And Bolts
    GC0155410Courtesy of CHRYSLER GROUP, LLC
  9. Tighten the upper bolt fastener to axle bracket to specifications Refer to FRONT, LINK AND COIL, SPECIFICATIONS .
  10. Tighten cam nut at the axle bracket to specifications Refer to FRONT, LINK AND COIL, SPECIFICATIONS .
    Fig 5: Frame Rail Bracket, Nut & Bolt
    GC0155424Courtesy of CHRYSLER GROUP, LLC
  11. Tighten the rear nut at the frame bracket to specifications Refer to FRONT, LINK AND COIL, SPECIFICATIONS .
