P2111-Electronic Throttle Control System - Unable To Close - Bank 1: Notes

WARNING: This page is about a different car, the 2013 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .

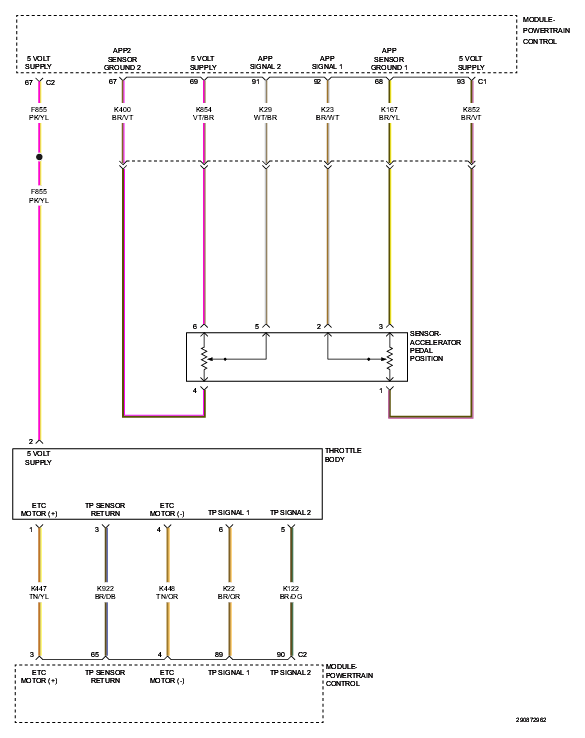

Fig 1: Throttle Position Sensor Circuit Wiring Diagram

Courtesy of CHRYSLER GROUP, LLC
