MODULE, Door: Removal: Removal

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

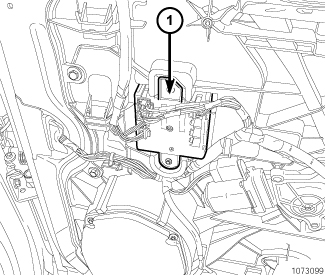

Fig 1: Front Door Control Module
GC0087517Courtesy of CHRYSLER LLC
  1. Disconnect and isolate the battery negative cable.
  2. Remove the trim panel from the inside of the front door. Refer to PANEL, Door Trim , Removal .
  3. Disconnect each of the electrical connectors from the connector receptacles of the door control module (1).
  4. Remove the two screws that secure the door control module to the front door hardware module carrier.
  5. Remove the door control module from the door hardware module carrier.
