P258B-Electronic Vacuum Pump Performance: Notes

WARNING: This page is about a different car, the 2013 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .

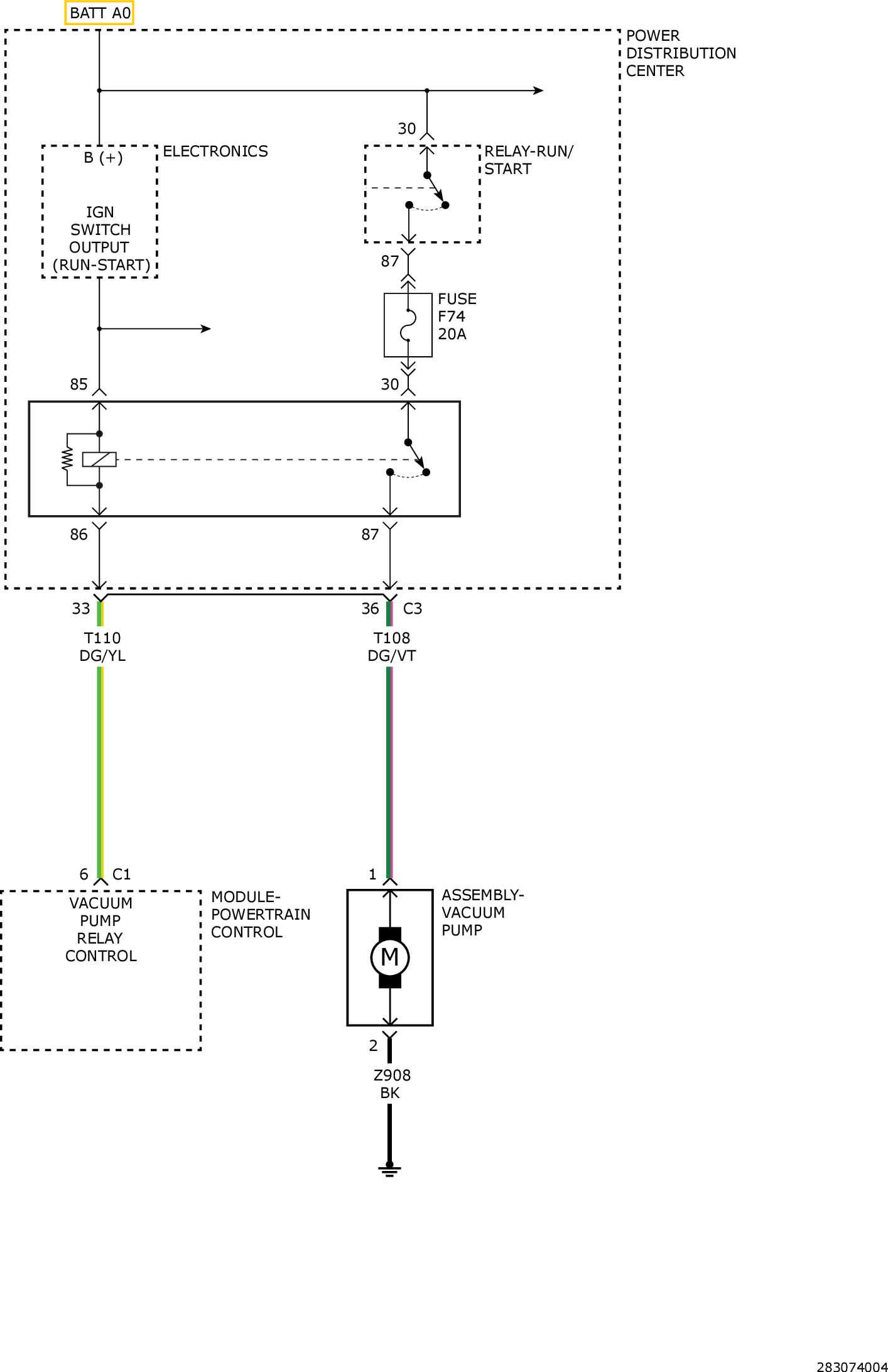

Fig 1: Electric Vacuum Pump Circuit Wiring Diagram

Courtesy of CHRYSLER GROUP, LLC
