SENSOR, Park Assist: Removal: Removal
WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

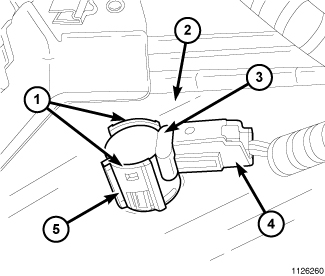

The park assist sensors (3) and the sensor spacers (O-rings) are each available for separate service replacement.
- Disconnect and isolate the battery negative cable.
- From the back of the bumper (2), disconnect the wire harness connector (4) from the park assist sensor (3) connector receptacle.
- Carefully pry the sensor bracket (5) latch features (1) away from the top and bottom latch tabs of the sensor far enough to disengage the sensor from the bracket.
- Disengage the O-ring spacer from around the circumference of the sensor membrane protrusion.
- If required, depress the four locking tabs and remove the sensor brackets from the bumper.
