Shaft, Axle: Removal: Removal

WARNING: This page is about a different car, the 2013 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.

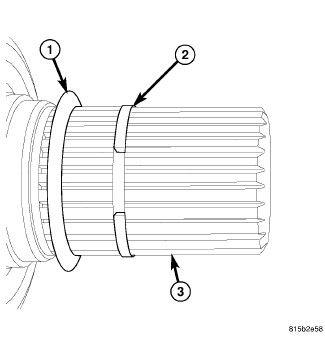

Fig 1: O-Ring & Snap Ring
GC0082765Courtesy of CHRYSLER GROUP, LLC
  1. Remove half shaft from vehicle Refer to SHAFT, AXLE, REMOVAL .
  2. Clean axle seal area.
  3. Remove O-ring (1) and snap ring (2) from axle shaft (3).

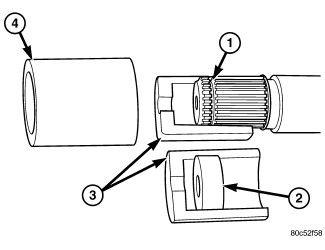

    Fig 2: Axle Shaft Puller
    GC0083294Courtesy of CHRYSLER GROUP, LLC
  4. Remove axle shaft with (special tool #8420B, Remover, Shaft) (2, 3, 4) and (special tool #C-3752, Slide Hammers).

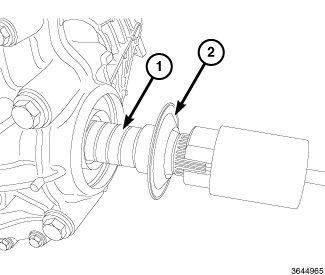

    Fig 3: Oil Slinger & Shaft
    GC0152047Courtesy of CHRYSLER GROUP, LLC
  5. Remove axle shaft (1) from axle.
