Actuator, Axle Locker: Installation: Installation

WARNING: This page is about a different car, the 2013 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.

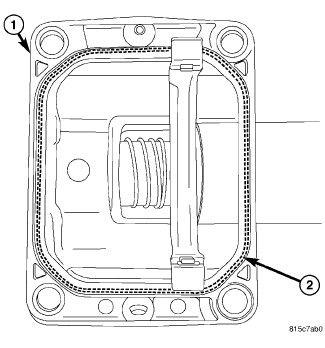

Fig 1: Actuator Seal

Courtesy of CHRYSLER GROUP, LLC

Clean actuator (1) sealing surface and install new gasket (2) if necessary.

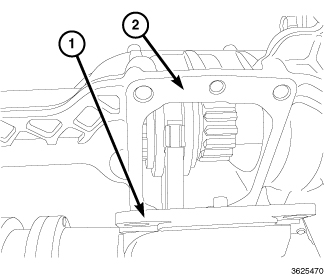

Fig 2: Actuator & Disconnect Pocket
Courtesy of CHRYSLER GROUP, LLC
Align actuator shift fork with disconnect collar and install actuator (1) on the disconnect pocket (2).

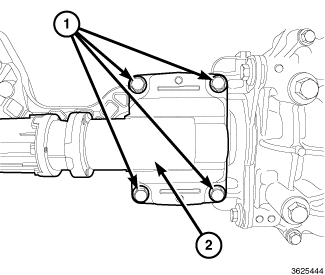

Fig 3: Actuator & Bolts
Courtesy of CHRYSLER GROUP, LLC

NOTE:
The actuator (2) must be tightened in a clockwise pattern, starting with the top left bolt (11 o'clock position).
Install actuator bolts (1) and tighten to 28 N.m (21 ft. lbs.).
Install disconnect actuator wiring connector.
Verify differential fluid level and add fluid if necessary.
