Gear, Link and Coil: Installation: Installation

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

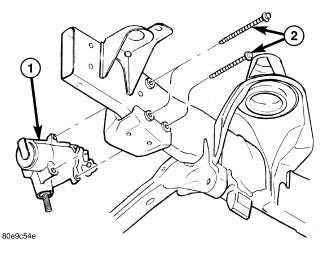

Fig 1: Identifying Steering Gear And Bolts

Courtesy of CHRYSLER LLC

Position the steering gear (1) the frame rail. install the three mounting bolts (2), and tighten to 196 N.m (145 ft. lbs.).

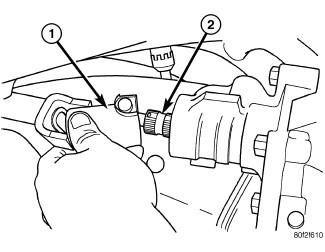

Fig 2: Column Shaft
Courtesy of CHRYSLER LLC

1 - STEERING COUPLER

2 - STEERING GEAR INPUT SHAFT

Align steering coupler (1) on gear shaft (2). Install pinch bolt and tighten to 49 N.m (36 ft. lbs.) torque.

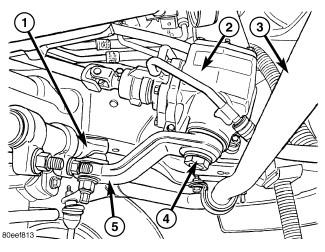

Fig 3: Pitman Arm Installed

Courtesy of CHRYSLER LLC

1 - DRAGLINK

2 - STEERING GEAR

3 - SWAYBAR

4 - NUT/WASHER

5 - PITMAN ARM

Align and install the pitman arm (5). Refer to ARM, Pitman, Link and Coil , Installation .
Install the washer and retaining nut (4) on the pitman shaft. Tighten the nut to 305 N.m (225 ft. lbs.).
Connect fluid hoses to steering gear , tighten to 32 N.m (23 ft. Refer to HOSE, Power Steering, Independent Front Suspension , Installation HOSE, Power Steering, Link and Coil , Installation . lbs.).
Add fluid. Refer to Pump , Standard Procedure .
Reset the toe and center the steering wheel. Refer to Wheel Alignment , Standard Procedure .
