WHEEL, Steering: Removal: Removal

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

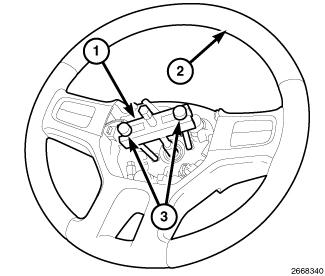

Fig 1: Steering Wheel Bolt

Courtesy of CHRYSLER LLC

Disable and remove the driver's side airbag. Refer to AIR BAG, Driver , Removal .
Remove the steering wheel bolt and discard.
NOTE:
The jaws should point outward from the center of the steering wheel for removal.
Install Gear Puller (special tool #L-4407A, Puller, Gear) (1) and OTC R 7929A jaws (3) or equivalent and loosen the steering wheel (2).
Remove the tools (1,3) and then remove the steering wheel (2).
