Shaft, Drive, Rear Light Duty: Installation: Installation

WARNING: This page is about a different car, the 2013 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Propeller Shaft & Output Shaft

Courtesy of CHRYSLER GROUP, LLC

Slide slip yoke (1) onto automatic transmission/transfer case output shaft (2) with reference marks aligned.

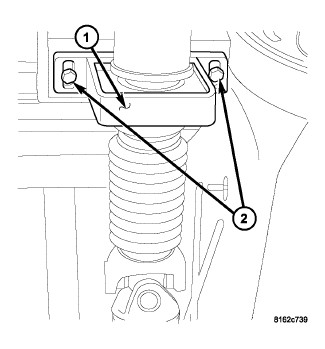

Fig 2: Center Bearing & Bolts
Courtesy of CHRYSLER GROUP, LLC
If two piece propeller shaft, align center bearing (1) with reference marks on center bearing bracket and tighten bolts (2) to 54 N.m (40 ft. lbs.).

Fig 3: Pinion Flange & Rear Propeller Shaft
Courtesy of CHRYSLER GROUP, LLC

NOTE:
Drive shaft bolts must be replaced or cleaned and Mopar® Lock and Seal Adhesive or equivalent applied.
Align reference marks on propeller shaft and pinion flange. Install companion flange (1) bolts and tighten to 115 N.m (85 ft. lbs.)

CAUTION:

Failure to follow these instruction may result in a driveline vibration.
