Section 289 (Horn System (Service Information) 1500): Horn: Removal: Removal
WARNING: This page is about a different car, the 2013 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect and isolate the negative cable from the battery.
- Remove the left front fender wheel house splash shield from the vehicle. Refer to SHIELD, SPLASH, FRONT WHEELHOUSE, REMOVAL .

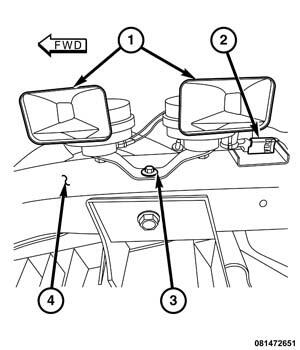

- Locate the horns and mounting bracket (1) on the outboard side of the left front fender load beam (4) above the left front fender wheel house.
- Disconnect the headlamp and dash wire harness connector for the horns (2) from the horn connector at the back of the rearward horn.
- Remove the screw (3) that secures the horn mounting bracket to the load beam.
- Remove the horns and mounting bracket from the load beam as a unit.
