With Air Suspension (Ser)

WARNING: This page is about a different car, the 2013 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

All pressurized air suspension components contain high pressure air (up to 220 psig). Use extreme caution when inspecting for leaks. Wear safety goggles and adequate protective clothing when inspecting or servicing the air suspension system. A sudden release of air under this amount of pressure can cause possible serious or fatal injury.

WARNING:

Support the vehicle by supplemental means before performing any work on the air suspension system to prevent the vehicle from changing height. Before any given component is to be serviced it must be deflated. Servicing the air suspension system without supplemental support, or with pressure in the specific component, can cause possible serious or fatal injury.

CAUTION:

When removing an air line from a component and the air line is to be reused, do not remove the 90° fitting or the brass fitting from the air line. If either is removed, the air line must be replaced. New components have air line fittings attached; however if the original air line is used the original fitting must also be used. Do not remove protective caps or plugs from air lines or components until ready to install the air line to prevent moisture or dirt intrusion. All air line fittings must be hand started to avoid cross threading.

NOTE:

The rear air springs can only have the fittings removed and re-installed 5 times before there will be a leakage concern.

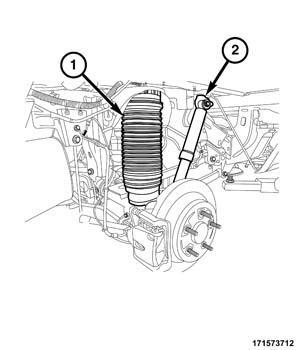

Fig 1: Air Suspension Spring & Shock Absorber

Courtesy of CHRYSLER GROUP, LLC

Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
With a scan tool, using the routines under the ASCM, perform the following:
- Disable the air suspension system.
- Run the Spring Deflate To Reservoir routine on the air suspension spring to be removed.
Remove the tire and wheel Refer to STANDARD PROCEDURE .
NOTE:
Do not remove the fitting from the air line. During installation the same fitting will be used. If the fitting is removed from the air line, the air line must be replaced.
Remove the inner wheel liner.

Fig 2: Air Lines/Fittings At Rear Air Suspension Spring Assemblies
Courtesy of CHRYSLER GROUP, LLC
Remove air line Voss 203 fitting and air line (1) from the air spring.
To remove the air spring (3), disengage the clips (2) on the top of the air spring and push down on the air spring (3) to compress, tilt the top out and lift the air spring (3) from the axle.
