Coil Spring

WARNING: This page is about a different car, the 2013 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.

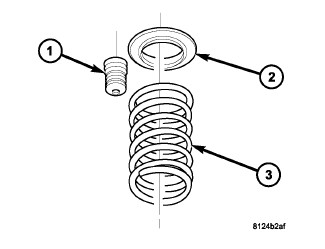

Fig 1: Rear Coil Spring

Courtesy of CHRYSLER GROUP, LLC

NOTE:

All torques should be made with the full vehicle weight on the ground being supported by the tires.

Position spring (3) and isolator (2) on the axle and align into the spring upper pocket.
Carefully raise the rear axle into place.

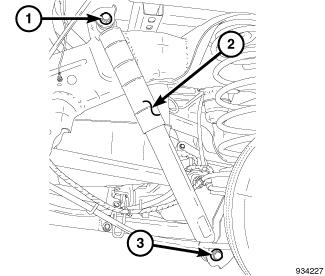

Fig 2: Shock Absorber & Shock Upper/Lower Bolt
Courtesy of CHRYSLER GROUP, LLC
Install the shock lower bolt (3) and nut, and do not tighten.
Remove the holding fixture for the rear axle.
Remove the support and lower the vehicle.
Tighten shock lower bolt (3) and nut to specifications. Refer to SPECIFICATIONS .
