Leaf Spring System
WARNING: This page is about a different car, the 2013 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of CHRYSLER GROUP, LLC

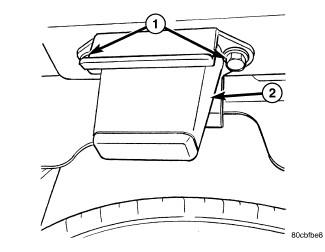

| 1 - MOUNTING BOLTS |
| 2 - JOUNCE BUMPER |
- Remove the two bolts (1) securing the jounce bumper (2) to the bracket.
- Remove the jounce bumper (2).
