Leaf Spring System
WARNING: This page is about a different car, the 2013 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Some vehicles may snap into position instead using bolts. The jounce bumper will be located in the same position.

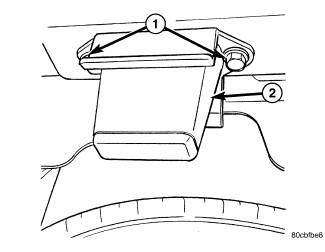

| 1 - MOUNTING BOLTS |
| 2 - JOUNCE BUMPER |
- Install the jounce bumper (2).
- Install the two bolts (1) securing the jounce bumper (2) to the bracket and tighten to specifications. Refer to SPECIFICATIONS .
