Arm, Lower Control: Installation: Installation

WARNING: This page is about a different car, the 2013 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

The small bushing attaches to the frame and the large bushing to the axle.

  1. Install the lower control arm to the vehicle.

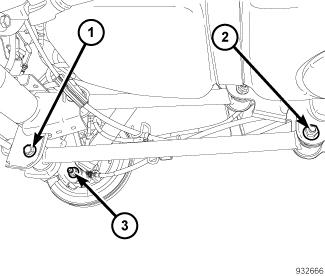

    Fig 1: Lower Control Arm Bolts & Nuts
    GC0088302Courtesy of CHRYSLER GROUP, LLC
  2. Install the lower control arm bolt (1) with a new  nut at the axle. Do not tighten.
  3. Install the lower control arm bolt and nut (2) at the frame. Do not tighten.

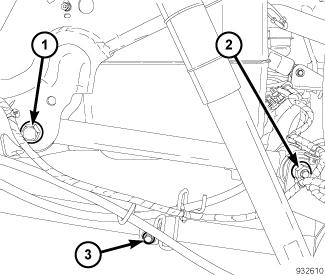

    Fig 2: Guide Bolt, Upper Control Arm Bolts & Nut
    GC0088301Courtesy of CHRYSLER GROUP, LLC
  4. Position the parking brake cable guide (Left side only), install the guide bolt (3) and tighten to specifications. Refer to SPECIFICATIONS .
  5. Remove the holding fixture supporting the axle.
  6. Remove the support and lower the vehicle.
  7. Tighten the lower control arm bolts to specifications. Refer to SPECIFICATIONS .
