Pedal, Parking Brake: Installation: Installation
WARNING: This page is about a different car, the 2013 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.

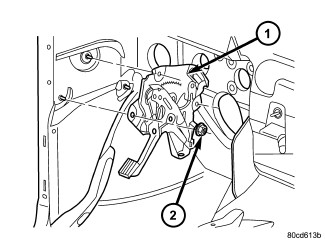

| 1 - PEDAL ASSEMBLY |
| 2 - MOUNTING NUT |
- Position the replacement pedal assembly (1) on the dash and cowl.
- Install the bolts/nuts (2). For 1500 series , tighten to 25 N.m (18 ft. lbs.). For 2500/3500 series , tighten to 28 N.m (21 ft. lbs.).
- Install the park brake release rod.
- Connect the front cable to the arm on the pedal assembly (1).
- Install the front cable grommet into the floorpan and the cable retainer, roll the carpet back.
- Connect the wires to the brake lamp switch.
- Install the knee bolster. Refer to COVER, STEERING COLUMN OPENING, INSTALLATION .
- Raise the vehicle.
- Adjust the parking brake cable tensioner. Refer to TENSIONER, PARKING BRAKE CABLE, ADJUSTMENTS .
