With Air Suspension (Ser)
All pressurized air suspension components contain high pressure air (up to 220 psig). Use extreme caution when inspecting for leaks. Wear safety goggles and adequate protective clothing when inspecting or servicing the air suspension system. A sudden release of air under this amount of pressure can cause possible serious or fatal injury.
Support the vehicle by supplemental means before performing any work on the air suspension system to prevent the vehicle from changing height. Before any given component is to be serviced it must be deflated. Servicing the air suspension system without supplemental support, or with pressure in the specific component, can cause possible serious or fatal injury.
When removing an air line from a component and the air line is to be reused, do not remove the 90° fitting or the brass fitting from the air line. If either is removed, the air line must be replaced. New components have air line fittings attached; however if the original air line is used the original fitting must also be used. Do not remove protective caps or plugs from air lines or components until ready to install the air line to prevent moisture or dirt intrusion. All air line fittings must be hand started to avoid cross threading.
- Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
- With a scan tool, using the routines under the ASCM, perform the following:
- Disable the air suspension system.
- Run the Spring Deflate To Reservoir routine on the air suspension spring and shock assembly to be removed.
- If equipped, remove the wiring harness routing clip from the shock mounting stud.NOTE:
Do not remove the fitting from the air line. During installation the same fitting will be used.
CAUTION:Only remove the air line fitting (hex portion) and not the Pressure Retention Valve (round portion) of the brass assembly on top of the air suspension spring and shock assembly. Removing and reinstalling the valve (round) part of the assembly may cause a leak.

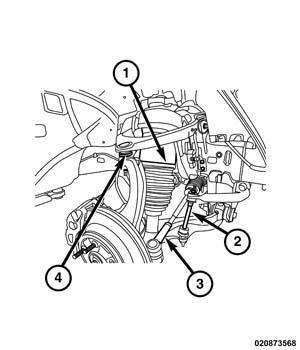

- Disconnect the air line and fitting (2) from the air suspension spring and shock assembly.
- Remove the tire and wheel assembly.
- Support the lower control arm outboard end.
- Remove the three upper shock nuts (1).
- Remove the lower shock bolt and nut.
- Remove the caliper adapter with the caliper. Refer to ADAPTER, DISC BRAKE CALIPER, REMOVAL .
- Remove the rotor. Refer to ROTOR, BRAKE, REMOVAL .
- Disconnect the wheel speed sensor wiring from the knuckle and upper control arm.

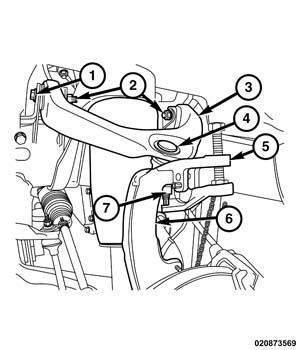

- Remove the upper ball joint retaining nut and separate the upper ball joint (4) from the knuckle (6) using Ball Joint Remover (special tool #9360, Remover, Ball Joint)
- Remove the stabilizer link lower nut (2).
- Remove the axle hub nut.

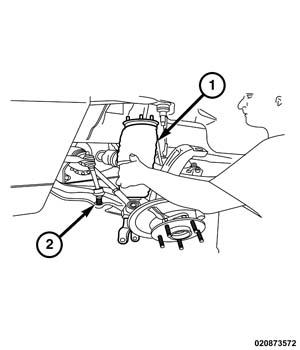

- Remove the shock assembly (1).
