Pipe, Exhaust: Removal: 3.6L

WARNING: This page is about a different car, the 2013 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Exhaust System - 3.6L Engine - Typical

Courtesy of CHRYSLER GROUP, LLC

Raise and support the vehicle.
Remove the rear exhaust pipe (1) to Y-pipe flange (3) nuts (2) and separate the two pipes.
NOTE:
Right side shown in illustration. Left side similar.

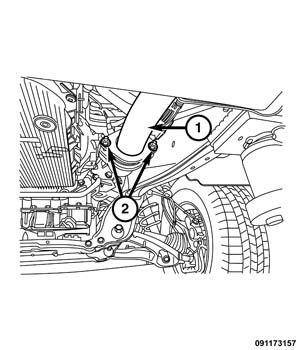

Fig 2: Y-Pipe Flange Nuts
Courtesy of CHRYSLER GROUP, LLC
Remove the catalytic convertor to Y-pipe (1) flange nuts (2).
Carefully remove the exhaust system Y-pipe.
