Section 266 (Charging System (Service Information) 1500): Generator: Installation: 3.6L
WARNING: This page is about a different car, the 2013 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.

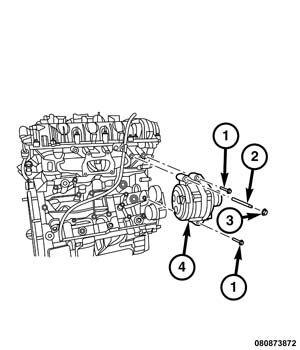

- Position the generator into the vehicle.
- Install the upper bolt (1).
Tighten to 25 N.m (18 Ft. Lbs.).
- Install the lower bolt (1) and upper nut (3).
Tighten to 25 N.m (18 Ft. Lbs)
- Install the serpentine belt. Refer to BELT, SERPENTINE, INSTALLATION .
- Install the B+ terminal to the generator stud.
Tighten to 11 N.m (97 In. Lbs.).
- Plug in the field circuit to the generator.
- Connect the negative battery cable.
