Control, A/C And Heater: Installation: Installation

WARNING: This page is about a different car, the 2013 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.

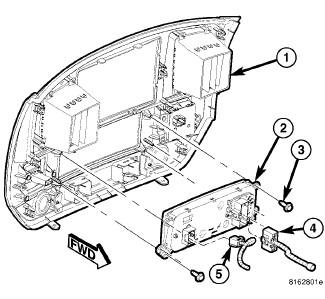

Fig 1: A/C-Heater Control, Center Bezel & Harness Connectors
GC0083759Courtesy of CHRYSLER GROUP, LLC
NOTE:

Typical A/C-heater control shown in illustration.

  1. Position the A/C-heater control (2) onto the back of the instrument panel center bezel (1).
  2. Install the four screws (3) that secure the A/C-heater control to the center bezel. Tighten the screws to 2.2 N.m (20 in. lbs.).
  3. Connect the wire harness connectors (4 and 5) to the back of the A/C-heater control and install the instrument panel center bezel. Refer to BEZEL, INSTRUMENT PANEL, CENTER, INSTALLATION .
  4. Reconnect the negative battery cable.
  5. Initiate the Actuator Calibration function using a scan tool. Refer to STANDARD PROCEDURE .
