Left Side

WARNING: This page is about a different car, the 2013 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.

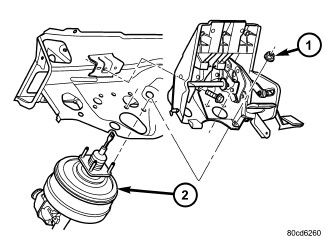

Fig 1: Power Brake Booster & Mounting Nut

Courtesy of CHRYSLER GROUP, LLC

Remove the resonator assemble and air inlet hose.
Disconnect negative cable from battery.
Loosen
the nuts (1) that secure the brake booster (2) to the bulkhead.

Fig 2: Identifying Drive Belt (3.7L/4.7L Engine)
Courtesy of CHRYSLER GROUP, LLC
Remove the main drive belt (4).

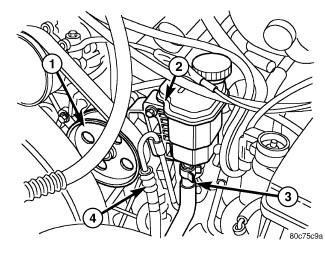

Fig 3: Power Steering Pump
Courtesy of CHRYSLER GROUP, LLC
Remove the power steering pump from the cylinder head and position aside.

Fig 4: Ignition Coils & Spark Plug Wires
Courtesy of CHRYSLER GROUP, LLC
Remove the spark plug wires (3).
Remove the wiring harness retainers located on the generator mounting stud and valve cover stud and position it to the front of the cylinder head.
Remove the PCV breather hose.
Remove the PCV from the left side valve cover.

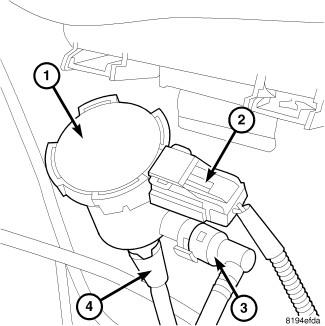

Fig 5: Locating EVAP Canister Purge Solenoid
Courtesy of CHRYSLER GROUP, LLC
Remove the purge solenoid lines (3 and 4).

Fig 6: Removing/Installing Injector Connector
Courtesy of CHRYSLER GROUP, LLC
Disconnect the fuel injector electrical connectors.

Fig 7: Cylinder Head Cover - Left
Courtesy of CHRYSLER GROUP, LLC
Remove the cylinder head cover mounting bolts.
Remove cylinder head cover and gasket (1).

NOTE:

The gasket may be used again, provided no cuts, tears, or deformation has occurred.
