Tubes And Hoses, Transmission Oil Cooler: Removal

WARNING: This page is about a different car, the 2013 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the negative battery cable(s) (Refer to STANDARD PROCEDURE ).
  2. Raise and support the vehicle (Refer to STANDARD PROCEDURE ) .
  3. Remove the front tire and wheel assemblies (Refer to STANDARD PROCEDURE ) .
  4. Remove the front skid plate (Refer to PLATE, SKID, FRONT ) .
  5. Remove the steering rack (Refer GEAR, INDEPENDENT FRONT SUSPENSION ) .
  6. If 4WD, remove the front differential (Refer to REMOVAL )

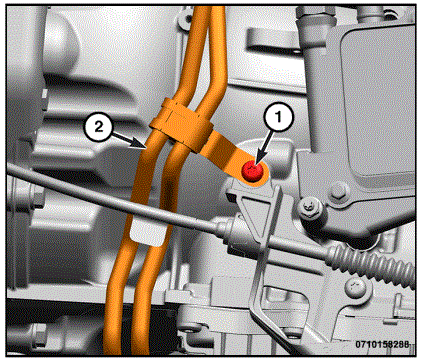

  7. Remove the fastener (1) retaining the transmission cooler lines (2) to the transmission.
    G00615708Courtesy of CHRYSLER GROUP, LLC

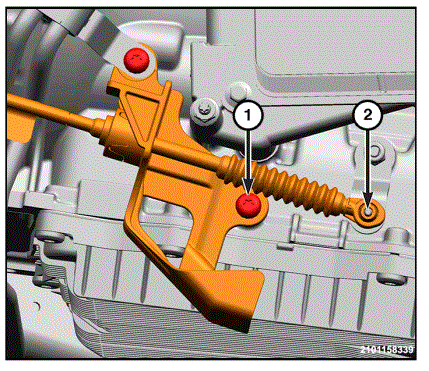

  8. Remove the fastener (1) and disconnect the Manual Park Release (MPR) cable (2). Place cable aside.
    G00615709Courtesy of CHRYSLER GROUP, LLC

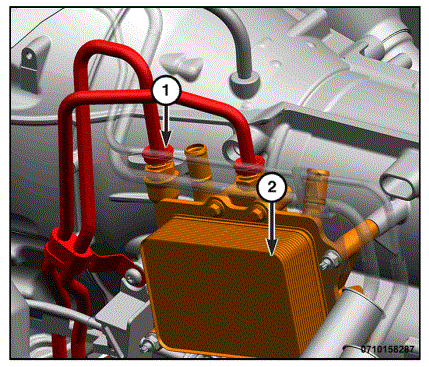

  9. Disconnect the transmission cooler lines (1) from the transmission heater (2) (Refer to STANDARD PROCEDURE ) .
    G00615710Courtesy of CHRYSLER GROUP, LLC

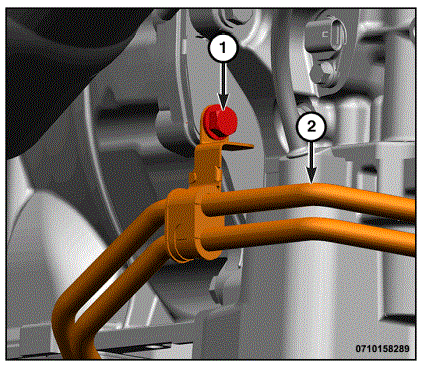

  10. Remove the fastener (1) retaining the transmission cooler lines (2) from the transmission bellhousing.
    G00615711Courtesy of CHRYSLER GROUP, LLC

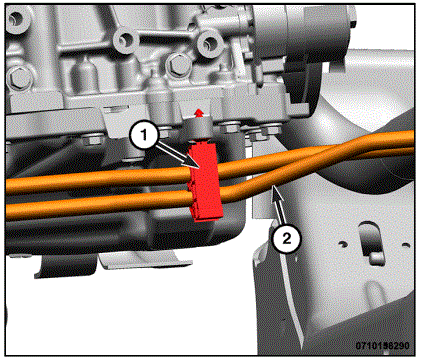

  11. Remove the retainer (1) supporting the transmission cooler lines (2) from the engine block.
    G00615712Courtesy of CHRYSLER GROUP, LLC
  12. Lower vehicle on hoist
  13. Disconnect the transmission cooler lines (1) from the transmission cooler (2) (Refer to STANDARD PROCEDURE ) .
  14. Raise vehicle on hoist.
  15. Remove the transmission lines from the vehicle.
