Fan, Cooling, Electric: Installation: 3.6L

WARNING: This page is about a different car, the 2013 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.

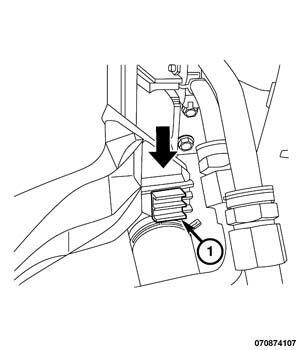

Fig 1: Installing Cooling Fan Shroud
GC0154472Courtesy of CHRYSLER GROUP, LLC
  1. Install the cooling fan shroud into the lower tabs (1) located on the radiator.
    Fig 2: Disconnecting/Connecting Radiator Fan Electrical Connector
    GC0154451Courtesy of CHRYSLER GROUP, LLC
  2. Install the fan shroud mounting bolts (4). Tighten to 10 N.m (89 in. lbs.).
  3. Connect the electric cooling fan (3) electrical connector.

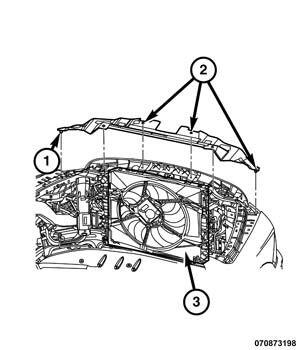

    Fig 3: Removing/Installing Electric Cooling Fan
    GC0154428Courtesy of CHRYSLER GROUP, LLC
  4. Position the upper radiator seal (1).
  5. Install the upper radiator seal plastic rivets (2).
  6. Install the upper radiator push pins.
  7. Connect the negative battery cable.
