NOZZLE, Washer: Installation: Installation
WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

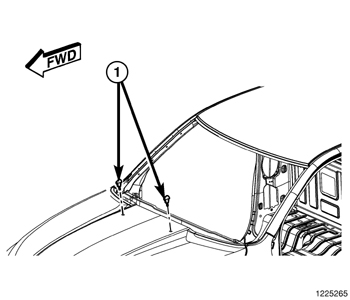

- From the top of the hood, position the washer nozzle (1) to the mounting hole on the outside of the hood panel.
- Align the anti-rotation tabs of the nozzle with the anti-rotation notches in the mounting hole.
- Using hand pressure, push firmly and evenly on the top of the washer nozzle until the integral latch features lock into place on the underside of the hood.

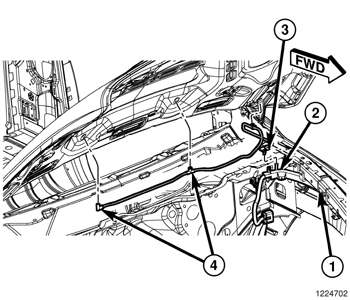

- From the underside of the hood, reconnect the washer hose fitting (4) to the barbed nipple of the washer nozzle.
- Reinstall the washer nozzle hose into its routing clips as necessary on the underside of the hood.
- Reinstall the push-in retainers that secure the rear edge of the hood silencer pad to the inner hood reinforcement.
