Regulator, BACKLITE Glass: Removal: Removal

WARNING: This page is about a different car, the 2013 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect and isolate the battery negative cable.
Remove the rear cab back panel. Refer to PANEL, CAB BACK TRIM, REMOVAL .

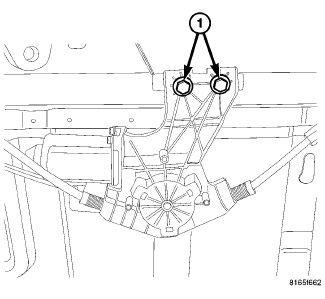

Fig 1: Locating Backlite Glass Regulator Mounting Bolts
Courtesy of CHRYSLER GROUP, LLC
Disconnect the electrical connector to the power motor.
Remove the two mounting bolts (1).

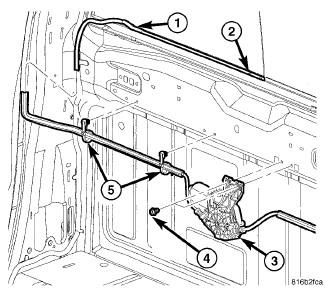

Fig 2: Identifying Glass Track, Vent Glass, Support Clips, And Regulator Assembly
Courtesy of CHRYSLER GROUP, LLC
Separate the cable housings from the glass track (1).
Disconnect the cable ends from the vent glass (2).
Separate the support clips (5) and remove the regulator assembly (3).
