Seat, Mega Cab Rear: Removal: Removal

WARNING: This page is about a different car, the 2013 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.

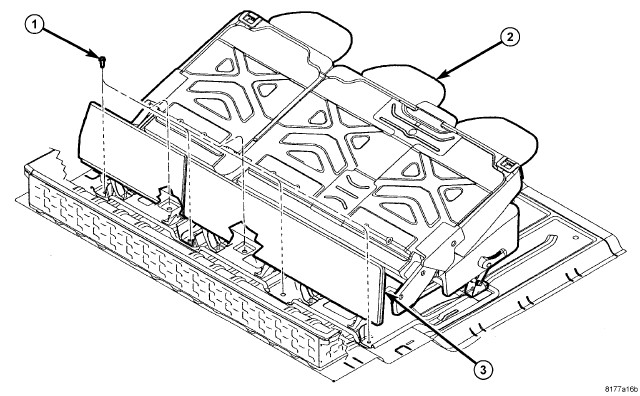

Fig 1: Rear Fasteners
GC0109953Courtesy of CHRYSLER GROUP, LLC
  1. Fold the seat backs (2) forward.
  2. Remove the filler panels (3).
  3. Remove the rear bolts (1).

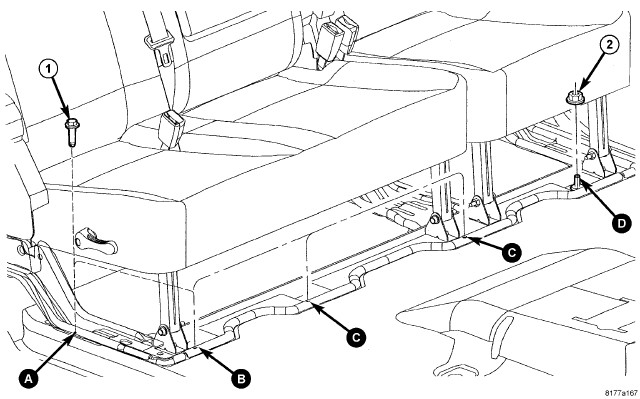

    Fig 2: Mega Fasteners Tightening Sequence
    GC0109954Courtesy of CHRYSLER GROUP, LLC
  4. Remove the front bolts (1) and nut (2).

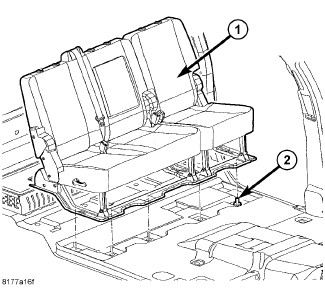

    Fig 3: Rear Seat Assembly
    GC0109955Courtesy of CHRYSLER GROUP, LLC
  5. Remove the seat assembly (1).
