Cylinder, Lock: Removal: Removal

WARNING: This page is about a different car, the 2013 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.

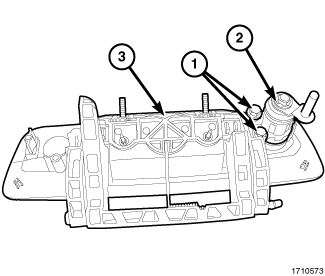

Fig 1: Lock Cylinder & Handle

Courtesy of CHRYSLER GROUP, LLC

Remove the latch release handle (3). Refer to HANDLE, LATCH RELEASE, REMOVAL .
Remove the screws (1) and remove the lock cylinder (2).
