Instrument Panel Center Speaker

WARNING: This page is about a different car, the 2013 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect and isolate the negative battery cable.
Remove the center instrument panel speaker grill.

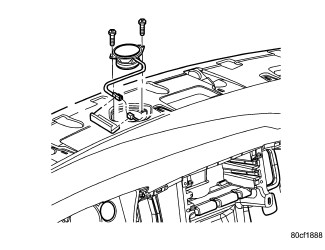

Fig 1: Removing/Installing Instrument Panel Center Speaker
Courtesy of CHRYSLER GROUP, LLC
Remove the speaker mounting fasteners.

Fig 2: Disconnecting/Connecting Speaker Electrical Connector
Courtesy of CHRYSLER GROUP, LLC
Disconnect the electrical connector (2) and remove the speaker (1).
