VALVE, Exhaust Gas Recirculation (EGR) Airflow Control: Installation: Installation

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: EGR Air Flow Control - Exploded View

Courtesy of CHRYSLER LLC

The EGR Air Flow Control Valve (5) is bolted to the end of the air intake connection (2).

Obtain a new gasket (3). Before positioning the new gasket (3), be sure to clean mating surfaces at the top of air flow control valve and the bottom of air intake connection (2).
Install four mounting bolts (4) and (6). Tighten four bolts to 10 Nm (89 in. lbs.) .

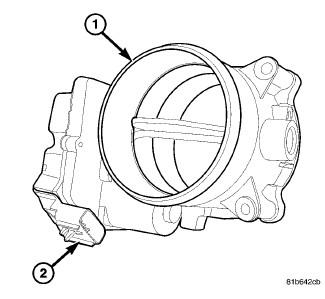

Fig 2: EGR Air Flow Control Valve - Exploded View
Courtesy of CHRYSLER LLC
Connect the electrical connector at point (2).
Connect the air cooler duct to bottom of air flow control valve. Install and tighten the duct clamp.
