TUBE, Diesel Exhaust Fluid Tank Fill: Installation: Installation

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

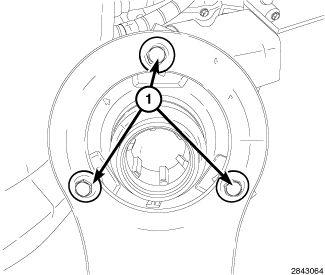

Fig 1: Remove/Installing DEF Fill Tube

Courtesy of CHRYSLER LLC

Install the Diesel Exhaust Fluid (DEF) fill tube and securely tighten fasteners.

Fig 2: Removing/Installing Fill Tube
Courtesy of CHRYSLER LLC
Connect the fill tube (1) to DEF tank (2).

Fig 3: Removing/Installing Fill Tube Vent Line
Courtesy of CHRYSLER LLC
Connect the fill tube vent line (2) to fluid limit vent valve (1).
Install the DEF filler tube cap.
