SENSOR, Turbocharger Speed: Removal: Removal
WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

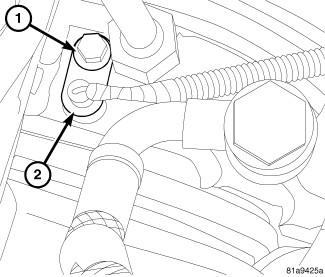

| 1 - BOLT |
| 2 - TURBOCHARGER SPEED SENSOR |
CAUTION:
Do not use a screw driver or tool to pry sensor out of the turbocharger bearing housing. Damage to sensor may result. If sensor is damaged during removal, install a new sensor.
- Disconnect negative battery cable.
- Remove turbocharger oil supply line.
- Disconnect speed sensor electrical connector.
- Remove turbocharger speed sensor mounting bolt (1).
- Remove turbocharger speed sensor (2).
