PAN, Oil: Removal: Removal: 4x4

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Oil Pan
GC0108404Courtesy of CHRYSLER LLC
  1. Disconnect the battery negative cables.
  2. Remove the intake air assembly.
  3. Remove the radiator shroud retaining bolts.
  4. Install Engine Support Fixture No. (special tool #8534B, Fixture, Driveline Support).
  5. Raise and support the vehicle.
    WARNING:

    HOT OIL CAN CAUSE PERSONAL INJURY.

  6. Drain the engine oil. Refer to Standard Procedure .

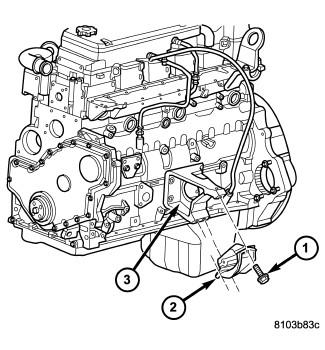

    Fig 2: LH Insulator
    GC0108406Courtesy of CHRYSLER LLC
    1 - Bolt
    2 - Insulator
    3 - Mount
  7. Loosen the front engine mount bolts.
  8. Use the Engine Support Fixture No. (special tool #8534B, Fixture, Driveline Support) to raise engine out of the front mounts.
  9. Remove the engine oil dipstick.

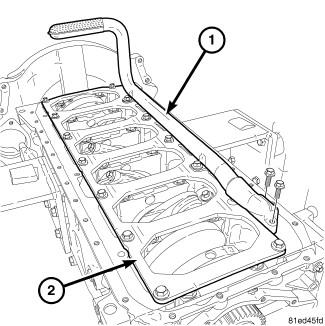

    Fig 3: Identifying Oil Pickup Tube
    GC0108407Courtesy of CHRYSLER LLC
  10. Remove oil pan bolts, break the pan to block seal, and lower pan slightly.
  11. Remove oil suction tube bolts and lower the suction tube into oil pan.
  12. Remove the 2 bolts from the front of the engine block stiffener.
  13. Remove the oil pan.
