Push Rods

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

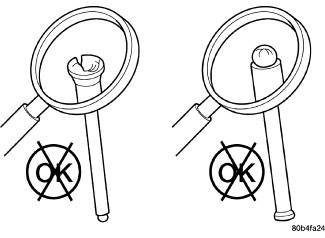

Fig 1: Inspecting Push Rod For Cracks

Courtesy of CHRYSLER LLC

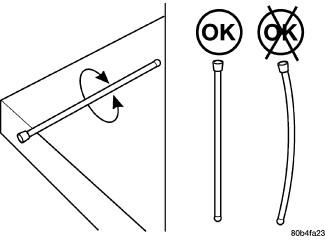

Fig 2: Inspecting Push Rod For Flatness

Courtesy of CHRYSLER LLC

Inspect the push rod ball and socket for signs of scoring. Check for cracks where the ball and the socket are pressed into the tube.

Roll the push rod on a flat work surface with the socket end hanging off the edge. Replace any push rod that appears to be bent.
