MANIFOLD, Exhaust: Installation: Installation

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

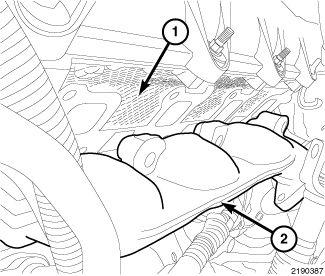

Fig 1: Locating Exhaust Manifold & Gasket
GC0118723Courtesy of CHRYSLER LLC

Left side shown in illustration, right similar.

  1. Prior to installation, make sure all gasket mating surfaces (1, 2) are clean and free of any debris.
  2. Position the exhaust manifold gasket and manifold.
    Fig 2: Exhaust Manifold Bolt Tightening Sequence - Left
    GC0081814Courtesy of CHRYSLER LLC
  3. Left Side:  Using the sequence shown in illustration, Install the exhaust manifold retaining bolts and tighten to 25 N.m (18 ft. lbs.).
    Fig 3: Exhaust Manifold Bolt Tightening Sequence - Right
    GC0081815Courtesy of CHRYSLER LLC
  4. Right Side:  Using the sequence shown in illustration, install the exhaust manifold retaining bolts and tighten to 25 N.m (18 ft. lbs.).
  5. Install the heat shield and tighten nuts to 8 N.m (70 in. lbs.).

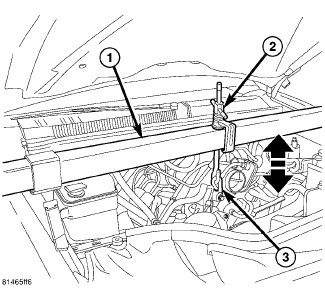

    Fig 4: Engine Support Tool
    GC0082907Courtesy of CHRYSLER LLC
    CAUTION:

    Do not damage engine harness while lowering the engine.

  6. Using the Engine Support Fixture (special tool #8534B, Fixture, Driveline Support), lower the engine into position.
  7. Raise and support the vehicle.

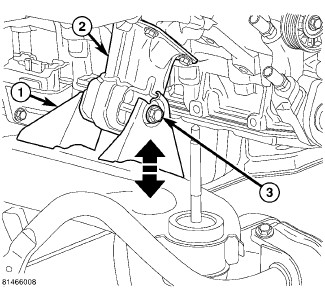

    Fig 5: Engine Mount Bolt
    GC0082897Courtesy of CHRYSLER LLC

    Right side shown in illustration, left side similar.

  8. Install the right and left engine mount through bolts (3) and tighten to 100 N.m (74 ft. lbs.).
    Fig 6: Oxygen Sensor & Catalytic Converter
    GC0080046Courtesy of CHRYSLER LLC
  9. Install the right and left exhaust pipe/catalytic converter assembly. Refer to CONVERTER, Catalytic , Installation .
  10. Connect the oxygen sensor electrical connectors (2).
  11. Lower the vehicle.
  12. Remove Engine Support Fixture (special tool #8534B, Fixture, Driveline Support).
    Fig 7: Engine Cover
    GC0087996Courtesy of CHRYSLER LLC
  13. Install the air cleaner housing (4).
  14. Install the clean air hose (2).
  15. Connect the intake air temperature (IAT) sensor electrical connector (3).
  16. Install the engine cover (1).
    Fig 8: Battery
    GC0087848Courtesy of CHRYSLER LLC
  17. Connect the negative battery cable (1).
  18. Start the engine and check for leaks.
