SPRING(S), Valve: Removal: Removal

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the air cleaner assembly and the air intake resonator. Refer to BODY, Air Cleaner , Removal , 5.7L .

Fig 1: Ignition Coil Mounting Bolts
Courtesy of CHRYSLER LLC
Remove the ignition coil electrical connectors (1).
Remove the ignition coils (2).
Remove the spark plugs.

Fig 2: Cylinder Head Cover Torque Sequence
Courtesy of CHRYSLER LLC
Using the sequence shown in illustration, remove the cylinder head cover retaining bolts and remove the cylinder head cover. Refer to COVER(S), Cylinder Head , Removal , 5.7L .

Fig 3: Intake Rocker Arm Marking
Courtesy of CHRYSLER LLC

CAUTION:
The rocker shaft assemblies are not interchangeable between the intake and the exhaust, failure to install them in the correct location could result in engine damage. The intake rocker arms (1) are marked with the letter "I" (2).

Fig 4: Pushrod Retaining Plate
Courtesy of CHRYSLER LLC

CAUTION:
The piston must be at TDC and both valves closed on the cylinder to be serviced.

CAUTION:
The longer pushrods are for the exhaust side and the shorter pushrods are for the intake side.

NOTE:
Pushrods must be installed in the same order as removed.

NOTE:

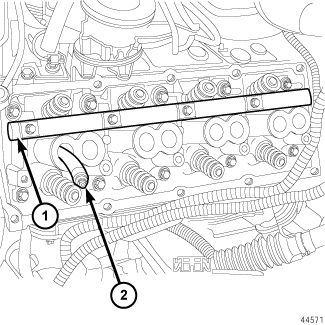

If removing the intake valve spring, install the pushrod retainer (special tool #9070, Retainer, Push Rod) (1).

Fig 5: Rocker Shafts Retaining Bolt Removal & Tightening Sequence
Courtesy of CHRYSLER LLC
Using the sequence shown in illustration, remove the exhaust/intake rocker arm shaft retaining bolts.

Fig 6: Rocker Shaft
Courtesy of CHRYSLER LLC

NOTE:
Tap the top of the valve spring retainer to loosen the spring retainers locks.
Install the rocker arm valve spring compressor shaft (special tool #9065B, Compressor, Valve Spring) (1).
Install the spring compressor adapter arm (special tool #9065B, Compressor, Valve Spring) if needed.
Insert an air hose (2) into the spark plug hole and charge the cylinder with air.

Fig 7: INTAKE VALVE SPRING REMOVAL/INSTALLATION
Courtesy of CHRYSLER LLC

NOTE:
A fulcrum assembly (1) must be rotated to the appropriate setting as marked on the tool for proper valve spring alignment.

NOTE:
Tap the top of the valve spring retainer to loosen the spring retainers locks.
Compress the valve spring with valve spring compressor (1) and remove the valve retainer locks.
Release the spring compressor and remove valve spring.
NOTE:
All valve springs and seals are removed in the same manner and are interchangeable between intake and exhaust.
Remove the valve seal.

Fig 8: Valve Spring Tool Adapter
Courtesy of CHRYSLER LLC

NOTE:
When the exhaust spring, seal or valve needs servicing. The exhaust adapter arm (1) must be installed to the spring compressor clamp (3).
Install tool (special tool #9065B, Compressor, Valve Spring), exhaust adapter arm (1) to the spring compressor (3) for servicing the exhaust side.
