SEAL, Crankshaft Oil, Rear: Removal: Removal

WARNING: This page is about a different car, the 2011 RAM Pickup. However, it is still accessible from the selected car via links, so may be relevant.

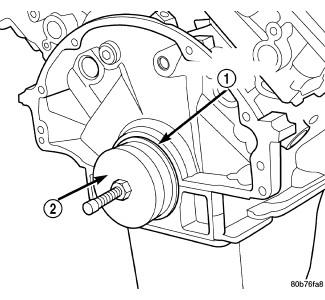

Fig 1: Removing Crankshaft Rear Oil Seal Using Special Tool
GC0082862Courtesy of CHRYSLER LLC
NOTE:

This procedure can be performed in vehicle.

  1. If being performed in vehicle, remove the transmission.
  2. Remove the flexplate. Refer to FLEXPLATE , Removal , 4.7L .
    NOTE:

    The crankshaft oil seal CANNOT be reused after removal.

    NOTE:

    The crankshaft rear oil seal remover (special tool #8506, Remover, Seal) must be installed deeply into the seal. Continue to tighten the removal tool into the seal until the tool can not be turned farther. Failure to install tool correctly the first time will cause tool to pull free of seal without removing seal from engine.

  3. Using Seal Remover (special tool #8506, Remover, Seal) (2), remove the crankshaft rear oil seal (1).
