Cylinder Head: Inspection: Inspection
WARNING: This page is about a different car, the 2011 RAM Pickup. However, it is still accessible from the selected car via links, so may be relevant.

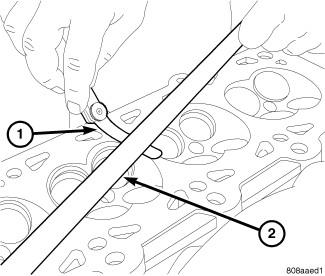

- Inspect the cylinder head for out-of-flatness, using a straightedge (2) and a feeler gauge (1). Check Cylinder head in several locations. If tolerances exceed 0.0508 mm (0.002 in.) replace the cylinder head.
- Inspect the valve seats for damage. Service the valve seats as necessary.
- Inspect the valve guides for wear, cracks or looseness. If either condition exist, replace the cylinder head.
