TRACK BAR, Front: Removal: Removal

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

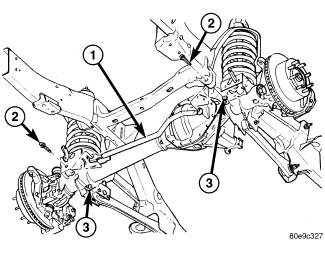

Fig 1: Track Bar Removal/Installation
GC0107563Courtesy of CHRYSLER LLC
1 - TRACK BAR
2 - BOLT
3 - NUT
  1. Raise and support the axle.
  2. Remove the track bar bolts (2) and nuts (3). Refer to Fig 1.
  3. Remove the track bar (1). Refer to Fig 1.
