SEAL, Crankshaft Oil, Rear: Installation: Installation

WARNING: This page is about a different car, the 2011 RAM Pickup. However, it is still accessible from the selected car via links, so may be relevant.

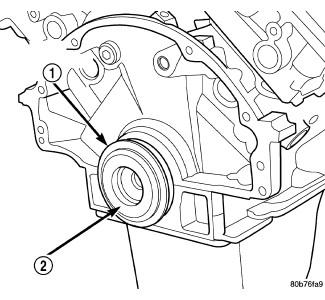

Fig 1: Identifying Magnetic Seal Guide Special Tool 8349-2 And Crankshaft Rear Oil Seal
GC0082863Courtesy of CHRYSLER LLC
1 - REAR CRANKSHAFT SEAL
2 - SPECIAL TOOL 8349-2 GUIDE
  1. Lubricate the crankshaft flange with engine oil.
  2. Position the magnetic seal guide (special tool #8349-2, Guide Crank Seal) onto the crankshaft rear face. Then position the crankshaft rear oil seal (1) onto the guide (2).

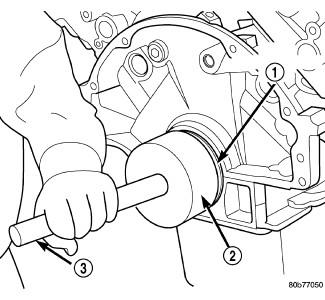

    Fig 2: Installing Crankshaft Rear Oil Seal
    GC0082864Courtesy of CHRYSLER LLC
    1 - REAR CRANKSHAFT SEAL
    2 - SPECIAL TOOL 8349-1 INSTALLER
    3 - SPECIAL TOOL C-4171 HANDLE
  3. Using Crankshaft Rear Oil Seal Installer (special tool #8349, Installer, Crankshaft Rear Oil Seal) (2) and Driver Handle (special tool #C-4171, Driver Handle, Universal) (3), with a hammer, tap the seal (1) into place. Continue to tap on the driver handle until the seal installer seats against the cylinder block crankshaft bore.
  4. Install the flexplate.
  5. Install the transmission.
