Valve Body: Disassembly: Disassembly

WARNING: This page is about a different car, the 2012 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

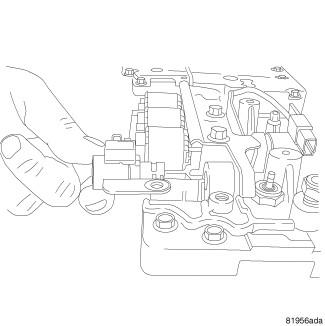

Fig 1: Removing Valve Body Solenoids

Courtesy of CHRYSLER GROUP, LLC

Remove all the bolts holding the on/off solenoids in place.
Remove all the on/off solenoids.

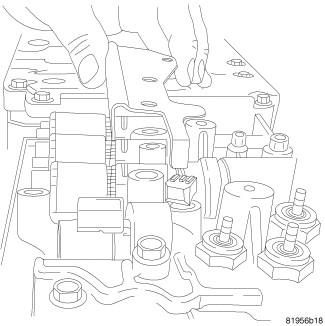

Fig 2: Removing Solenoid Bracket
Courtesy of CHRYSLER GROUP, LLC
Remove the bolts holding the linear solenoid bracket in place and remove solenoid bracket.
Remove all the linear solenoids.

Fig 3: Valve Body Pressure Sensor
Courtesy of CHRYSLER GROUP, LLC
Remove all the pressure sensors from the lower valve body.

Fig 4: Separator Plate
Courtesy of CHRYSLER GROUP, LLC

1- SEPARATOR PLATE
Remove all the bolts connecting the lower valve body to the upper valve body.
Disassemble the lower valve body and separator plate from the upper valve body.
Remove the separator plate (1).

Fig 5: Upper Valve Body Pressure Sensor
Courtesy of CHRYSLER GROUP, LLC

1 - 1/8 PIPE THREAD OIL PRESSURE SWITCHES
Remove the upper valve body pressure sensors (1).

Fig 6: Check Balls
Courtesy of CHRYSLER GROUP, LLC

1 - CHECK BALLS
Remove all the check balls (1).

Fig 7: Check Valves
Courtesy of CHRYSLER GROUP, LLC

1 - CHECK VALVES
Remove all check valves.

Fig 8: Removing/Installing Valves
Courtesy of CHRYSLER GROUP, LLC

1 - VALVES
Remove all valves (1).
