Holding Clutches: Operation: Operation: Notes

WARNING: This page is about a different car, the 2012 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

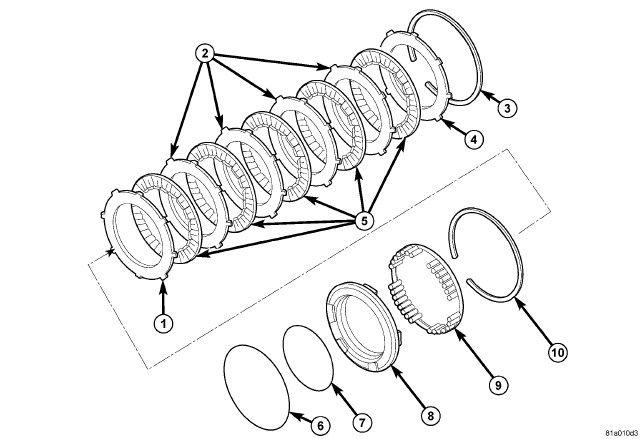

Fig 1: B1 Brake Clutch & Components

Courtesy of CHRYSLER GROUP, LLC

1 - REACTION PLATE	6 - O-RING
2 - PLATE	7 - O-RING
3 - SNAP RING	8 - PISTON
4 - SELECTABLE REACTION PLATE	9 - PISTON RETURN SPRING
5 - DISC	10 - SNAP RING
