Clutch, Overrunning: Disassembly: Disassembly
WARNING: This page is about a different car, the 2012 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of CHRYSLER GROUP, LLC

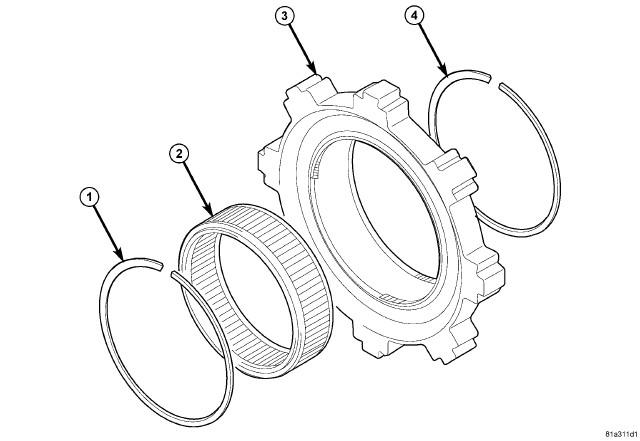

| 1 - SNAP RING |
4 - SNAP RING |
| 2 - F1 ONE WAY CLUTCH |
|
| 3 - F1 ONE WAY CLUTCH OUTER RACE |
|
- Remove the snap ring (1 from the F1 one way clutch assembly.
- Remove the F1 one way clutch (2) from the F1 one way clutch outer race (3)
