Relay, Intake Air Heater: Removal: Removal
WARNING: This page is about a different car, the 2012 RAM Pickup and 2012 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

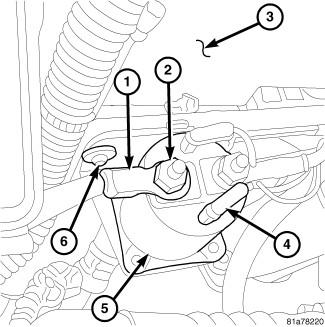

The air intake heater relay (5) is located in the engine compartment. It attached to a bracket. This bracket is attached to the right battery tray (3).
The mounting bracket and relay is replaced as an assembly.
- Disconnect both negative battery cables.
- Disconnect relay trigger wires (4) at relays. Note position of wiring before removing.
- Remove nuts (2) at cable connectors and disconnect cables (1) from mounting studs. Note position of cables before removing.
- Remove two relay mounting bracket screws (6) and remove relay assembly.
