Pump, Transmission Oil: Assembly: Assembly

WARNING: This page is about a different car, the 2012 RAM Pickup. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

Clean and inspect all components. Make sure that all passages are thoroughly cleaned and are free from dirt or debris. Make sure that all valves move freely in their proper bore. Make sure that all gear pockets and bushings are free from excessive wear and scoring. Replace the oil pump if any excessive wear or scoring is found.

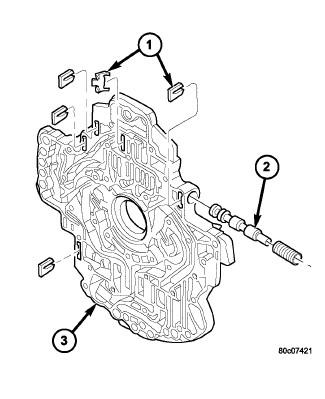

Fig 1: Oil Pump Valve Body, T/C Switch Valve & Retainers
GC0083012Courtesy of CHRYSLER GROUP, LLC
1 - RETAINER
2 - T/C SWITCH VALVE
3 - OIL PUMP VALVE BODY
  1. Lubricate the oil pump valves with Mopar® ATF +4 and install the valve (2), spring, and retainer (1) into the appropriate oil pump valve body (3) bore. Refer to Fig 1.

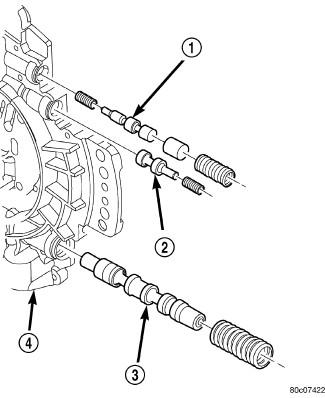

    Fig 2: T/C Regulator Valve, T/C Limit Valve & Regulator Valve
    GC0083013Courtesy of CHRYSLER GROUP, LLC
    1 - T/C REGULATOR VALVE
    2 - T/C LIMIT VALVE
    3 - MAIN REGULATOR VALVE
    4 - OIL PUMP VALVE BODY
  2. Install the T/C regulator valve (1), T/C limit valve (2), and regulator valve (3). Refer to Fig 2.
    NOTE:

    The pump separator plate is heat treated and therefore may exhibit a blue color or other discoloration in some areas. This is normal.

    Fig 3: Oil Pump Housing & Gears
    GC0092418Courtesy of CHRYSLER GROUP, LLC
    1 - SEPARATOR PLATE 5 - DOWEL (2)
    2 - DRIVEN GEAR (2) 6 - DRIVE GEAR
    3 - FLAPPER VALVE 7 - SCREW
    4 - PUMP HOUSING
  3. Coat the gears (2, 6) with Mopar® ATF +4 and install into their original locations.
  4. Place the oil pump flapper valve (3) into its pocket in the pump housing, with the rounded edges facing down.
  5. Place the separator plate (1) onto the oil pump housing (4). Refer to Fig 3.
  6. Install the screws (7) to hold the separator plate (1) onto the oil pump housing (4). Refer to Fig 3. Tighten the screws to 4.5 N.m (40 in.lbs.).

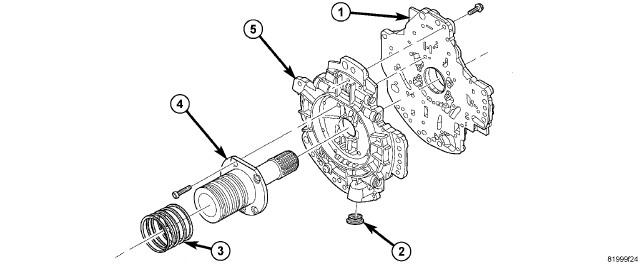

    Fig 4: Oil Pump Reaction Shaft
    GC0083011Courtesy of CHRYSLER GROUP, LLC
    1 - PUMP HOUSING 4 - REACTION SHAFT SUPPORT
    2 - OIL FILTER SEAL 5 - PUMP VALVE BODY
    3 - SEAL RING (5)
  7. Position the oil pump valve body (5) onto the locating dowels.
  8. Seat the two oil pump halves together and install all bolts finger tight.
  9. Torque all bolts down slowly starting in the center and working outward. The correct torque is 4.5 N.m (40 in.lbs.).
  10. Verify that the oil pump gears rotate freely and smoothly.
  11. Position the reaction shaft support (4) onto the oil pump valve body (6).
  12. Install and tighten the bolts to hold the reaction shaft support (4) to the oil pump valve body (5). The correct torque is 12 N.m (105 in.lbs.).
