Linkage, Wiper Arm: Removal: Removal
WARNING: This page is about a different car, the 2012 RAM Pickup and 2012 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The wiper linkage module includes the wiper motor. The wiper motor is also available for separate service replacement and can be removed from the wiper linkage module without removing the module from the vehicle. Refer to MOTOR, WIPER, REMOVAL .
- Unlatch and open the hood.
- Remove both wiper arms from the wiper pivots. Refer to ARM, WIPER, REMOVAL .
- Disconnect and isolate the battery negative cable.

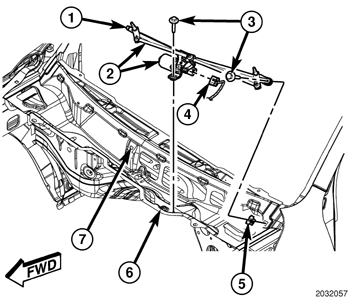

- Remove the cowl plenum cover/grille panel from over the cowl plenum (6). Refer to COVER, COWL PANEL, REMOVAL .
- Disconnect the left headlamp and dash wire harness connector (4) from the wiper motor pigtail wire connector.
- Remove the two screws (3) that secure the wiper linkage module (2) to the top of the cowl plenum panel.
- Lift the left end of the wiper linkage module upward out of the cowl plenum far enough to disengage the rubber insulated tab (1) on the end of the right pivot bracket from the slot (7) in the cowl plenum.
- Remove the wiper linkage module from the cowl plenum panel as a unit.
