Section 16 (Cooling System - Engine & Transmission): Description: Description
WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

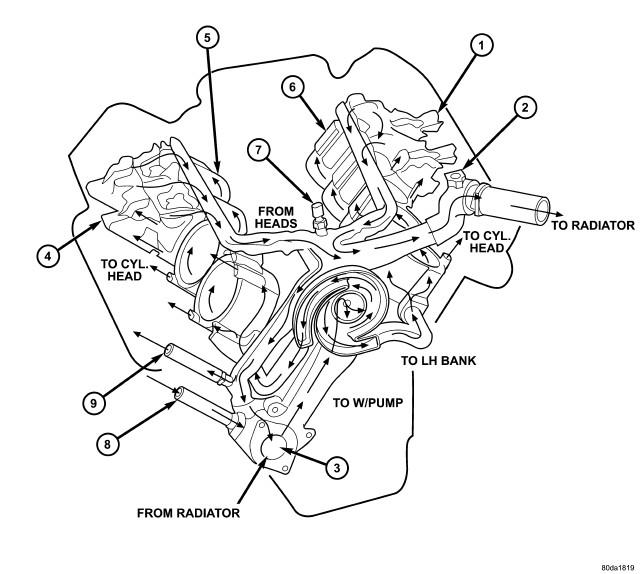

| 1 - LH CYL. HEAD | 6 - LH BANK CYL. BLOCK |
| 2 - BLEED | 7 - COOLANT TEMP. SENSOR |
| 3 - THERMOSTAT LOCATION | 8 - FROM HEATER CORE |
| 4 - RH CYL. HEAD | 9 - TO HEATER CORE |
| 5 - RH BANK CYL. BLOCK | - |
The 3.7L/4.7L engine cooling system consists of :
- LH Cylinder Head (1)
- Bleed (2)
- Thermostat location (3)
- RH Cylinder Head (4)
- RH Bank Cyl. Block (5)
- LH Bank Cyl. Block (6)
- Coolant Temp Sensor (7)
- From Heater Core (8)
- To Heater Core (9)
The cooling system regulates engine operating temperature. It allows the engine to reach normal operating temperature as quickly as possible. It also maintains normal operating temperature and prevents overheating.

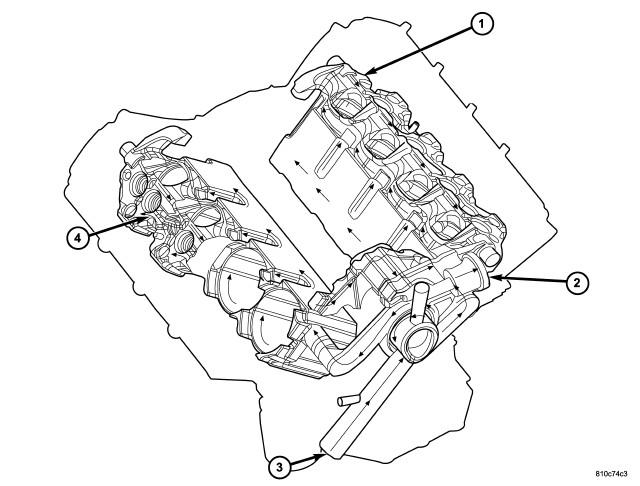

| 1 - LH CYLINDER HEAD | 3 - FROM RADIATOR |
| 2 - TO RADIATOR | 4 - TO RH CYLINDER HEAD |
The 5.7L engine cooling system consists of :
- LH Cylinder Head (1)
- To Radiator (2)
- From Radiator (3)
- To RH Cylinder Head (4)
The cooling system provides a means of heating the passenger compartment and cooling the automatic transmission fluid (if equipped). The cooling system is pressurized and uses a centrifugal water pump to circulate coolant through the system. The coolant recovery/reserve system utilizes an ambient overflow bottle.
