Cables, Battery: Installation: Installation: Positive

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

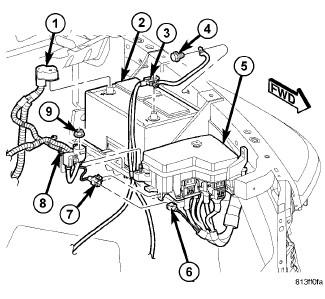

GC0083465Courtesy of CHRYSLER GROUP, LLC
  1. Position the battery positive cable (1) in the vehicle.

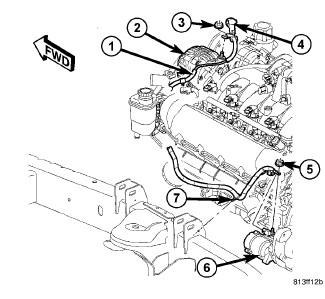

    GC0083468Courtesy of CHRYSLER GROUP, LLC
  2. Install the nut (3) securing the cable (1) to the alternator (2).
  3. Secure the terminal cap (4) to the alternator stud.
  4. Install the cable (1) pushpin into the bracket to the left of the alternator.
  5. Raise the vehicle on a hoist. Refer to HOISTING, STANDARD PROCEDURE .
  6. Install the nut (5) securing the cable to the starter solenoid (6).

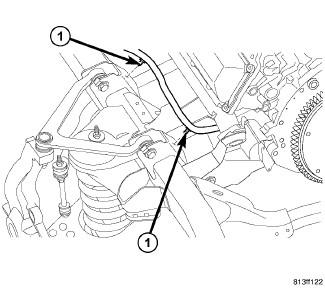

    GC0083467Courtesy of CHRYSLER GROUP, LLC
  7. Connect the battery cable retaining pushpins (1) securing the cable to the left frame rail.
  8. Lower the vehicle.
    GC0083465Courtesy of CHRYSLER GROUP, LLC
  9. Install the battery cable retaining pushpin (8) securing the cable to the battery tray.
  10. Install the wire harness connector (7) pushpin into the Totally Integrated Power Module (TIPM) (5) housing.
  11. Connect the wire harness connector (6) at the TIPM.
  12. Install the nut (9) securing the cable to the TIPM.
  13. Connect the battery positive cable terminal clamp (1).
  14. Connect the battery negative cable terminal clamp (3).
  15. Check the vehicle for normal operation.
