Section 1564 (Body - Interior & Exterior - 2500 Hd): Sunroof: Sunroof: Installation
WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
The Excessive Force Limitation (EFL) feature must be calibrated any time a sunroof motor/module is replaced with a new component. Failure to perform this procedure could result in vehicle damage or personal injury.
NOTE:
The EFL calibration procedure can be found in the service information. Refer to MOTOR, SUNROOF, STANDARD PROCEDURE .

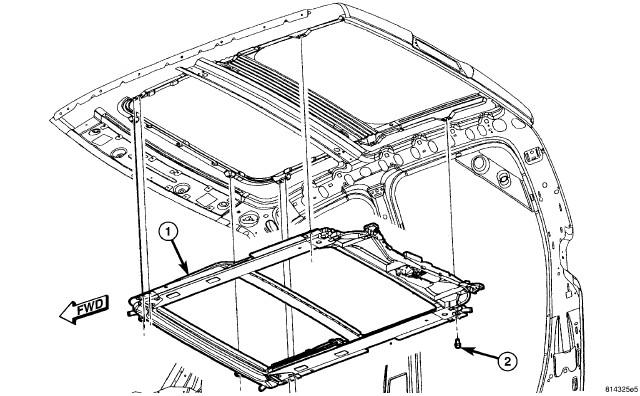

- Raise sunroof module assembly (1) and guide it carefully into position.
- Hand start the eight screws (2).
- Line up the locating holes and tighten the attaching screws (2) to 9 N.m (80 in. lbs.).

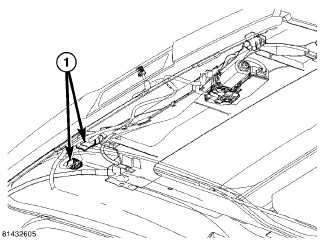

- Connect the electrical connector (1).

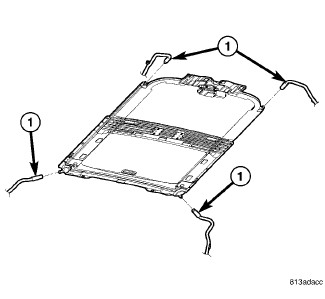

- Connect the drain tubes (1) to the sunroof.
- Connect battery negative cable.
- Install the glass. Refer to GLASS, SUNROOF, INSTALLATION .
- Install the vehicle headliner. Refer to HEADLINER, INSTALLATION .
- Perform the sunroof position calibration. Refer to MOTOR, SUNROOF, STANDARD PROCEDURE .
- Verify proper operation of the power sunroof system.
