Module, Transmission Control: Removal: Removal

WARNING: This page is about a different car, the 2012 RAM Pickup and 2012 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: This procedure is for the Aisin Transmission Control Module (TCM). The TCM is located in the passenger compartment, underneath the left side of the dash panel. No panels need be removed to access and remove the TCM
  1. Disconnect and isolate the negative battery cable.

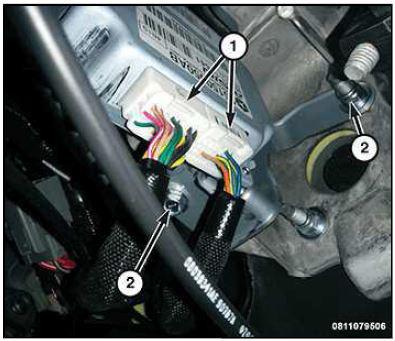

    2. Fig 1: TCM and Brackets
    G00405639Courtesy of CHRYSLER GROUP, LLC
  2. Disconnect the electrical connectors (1) from the Transmission Control Module (TCM).
  3. Remove retaining bolts securing the TSM bracket (2).
  4. Remove the TCM and bracket from the vehicle.
  5. Separate the TCM from the bracket.
